PCB and PCB Assembly Promotions and Coupons
6 reasons to order printed circuit boards from E-TekNet
Low price guarantee
We match or beat online available competitive price in North America market! You just need to send us the competitive quote and the commpetitive website and we will start from there.
PCB and PCB assembly online quote
Easy and instant online quote for bare board PCB, solder stencil and PCB assembly with live demo support. By simply one click from the quote, you can online order and online file upload!
One stop for all of your PCB needs
You don't need to shop around to find supplier A for bare PCB, supplier B for solder stencil, supplier C for components and supplier D for PCB assembly...... Every thing is one stop here!
Quick turn PCB and PCB assembly
PCB quick turn order as quick as 2 business day and quick turn PCB assembly order as quick as 10 buiness day. Place quick turn order any time 24 hours a day and start production instantly!
On time shipping guarantee
We also provide on-time shipping guarantee for bare board PCB order with standard PCB features. Your ordered bare boards will be free and just pay shipping even for one business day delay!
Customer service - always on your side
Daily 10-hour customer phone support from 8 am to 6 pm MST Mon-Fri and daily 20-hour online live chat technical support from 8 am to 2nd day 4 am MST Mon-Sat. We are on your side, always!
Customer Testimonials
Prototype promotions
Quality SystemsISO9001 certified and UL certified

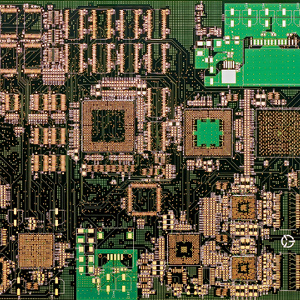

Our Capability on Bare Board PCB
Please check PCB Glossary for reference. Please contact us if you have a special requirement not listed in the following table.
Feature | Capability |
---|---|
Maximum Board Layers | Up to 18 layers |
Maximum Board size | 25" x 17" |
Board thickness (multilayer board) | Maximum:0.13" (any layers) ; Minimum: 0.025" (4 layer) |
Board thickness (1 or 2 layer board) | 0.02", 0.031", 0.039", 0.047", 0.062", 0.078", 0.094", 0.118", 0.125" |
Tolerance of board thickness | +/- 10% |
Base materials | FR-4, FR-406 (Tg 150 deg C), FR-408(Tg 170 deg C), G10, CEM3, Rogers, alumina ceramic |
Copper weight and minimum trace width/space required | 0.5 oz (min. trace width/space 4 mil), 1 oz (min. trace width/space 5 mil), 2 oz (min. trace width/space 7 mil), 4 oz (min. trace width/space 14 mil), 6 oz (min. trace width/space 20 mil), 8 oz (min. trace width/space 40 mil) |
Minimum conductor width and space | 0.003" (0.075 mm) for conductors including trace and annular ring |
Minimum finished hole size | 0.006" (0.15mm). (Please see our drill sizes in stock) |
Silkscreen/Legend colors | white, yellow, black, pink, red |
Solder Mask (LPI) | Colors: Green, Black, Red, Blue, Purple, Yellow, Silver, Gold |
Maximum hole aspect ratio | 10:1 |
Surface plating | Tin/Lead HAL, immersion gold (soft gold), electrolytic gold (hard gold), immersion tin, immersion silver, OSP |
Gold finger | Electrolytic gold on nickel: Max gold thickness 1.25 mm (30 micro-inches) |
Blind/buried vias | Yes |
*Definition for standard features for bare board PCB : Finished PCB thickness 0.062", FR4 material, 1 oz finished copper thickness, minimum conductor width/space >= 6 mil, , minimum annular ring >= 6 mil, minimum finished hole size >=12 mil. HASL Tin-lead or HASL Lead free, green LPI soldermask, white silkscreen. For promotion prices, minimum board size 1 inch on either width or length, maximum board size 12 inches on either width or length, maximum board area 35 square inches.
*Definition for nonstandard features for bare board PCB: Any features not listed on above definition are non-standard features

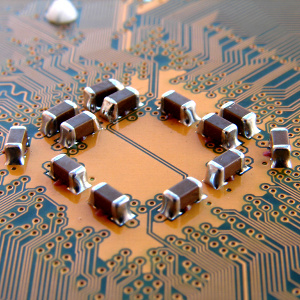

Our Capability on PCB Assembly
Please check PCB Glossary for reference. Please contact us if you have a special requirement not listed in the following table.
Feature | Capability |
---|---|
Minimum passive component size | 0201 |
Minimum pitch size on BGA components | 0.4 mmm |
Parts procurement | Kitted or turnkey |
Solder types | Tin/lead reflow or lead free RoHS compliant reflow |
Conformal coating | Yes |
Stainless solder steel stencil | Frameless or framed. |
Functional test after assembly | Yes. Need customer to send over test firxture or test design. |
*Definition for standard features for PCB assembly : Minimum passive component size 0603, Minimum BGA pitch size 1.0 mm, parts received on 2nd day after order is received, lead time is 15 business day or longer
*Definition for nonstandard features for PCB assembly : Any features not listed on above definition are non-standard features
